Examples are SR latch,D latch etc.įlip flops are basic storage elements similar to latches which are the fundamental building blocks of sequential circuits. Latches are related to flip flops, as latches are the basic circuits from which flip flops are constructed and hence, they are not practical for use in synchronous sequential circuits. These are used for storing binary information using feedback and for designing asynchronous sequential circuits. Latches are the storage elements that operate with signal levels, and are said to be level sensitive devices. In this triggering, the circuit operates only when the signal is logic low or logic 0.
In this triggering, the circuit operates only when the signal is logic high or logic 1. A circuit is activated only when the clock pulse is at a particular level. In this, there are two levels – logic high and logic low. Here the circuit activates when the transition occurs from logic 1 to logic 0. Here the circuit activates, when the transition occurs from logic 0 to logic 1. In this, the output changes when a transition occurs, that is when logic changes from 0 to 1 or from 1 to 0. There are two types of triggering – edge triggering and level triggering. These signals control how and when the output of the sequential circuits changes. It can be represented using square wave form, when both ON and OFF are not the same. A clock oscillates between 0 and 1, that is between ON and OFF. The clock signal has an important part in the sequential circuits. Here, flip flops and latches are used as memory elements.Īs you have noticed clock signals and pulses, now let’s discuss the clock and its related topics. That is, all the outputs are affected by the clock signal at the same time. In synchronous sequential circuits, the state of memory changes with the clock signal connected.
Un-clocked flip flops or time delay elements are used as memory elements. The change in internal state occurs when there is change in the input variable.

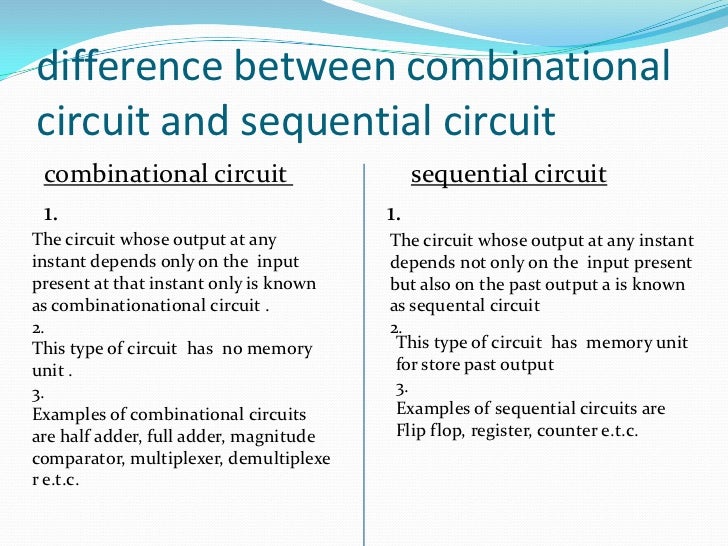

There are two types of sequential circuits: Asynchronous and synchronous sequential circuits.Īsynchronous sequential circuits are driven by the pulses of the inputs instead of using the clock signals, that is the state of circuit changes when the inputs change. Combinational circuit vs sequential circuits Types of sequential circuits Examples of sequential circuits are latches, flip flops, counters etc.Īs you got a rough idea about sequential circuits, let’s look into the differences between combinational circuits and sequential circuits to get a clear idea. Combinational circuit vs sequential circuitsĪs we can see in the block diagram given below, a sequential logic circuit consists of a combinational circuit and storage element, it not only depends on the present values of input but also on the previous values of inputs.Therefore to store the previous values, a storage element is included, it can store binary information which is given at any time.
